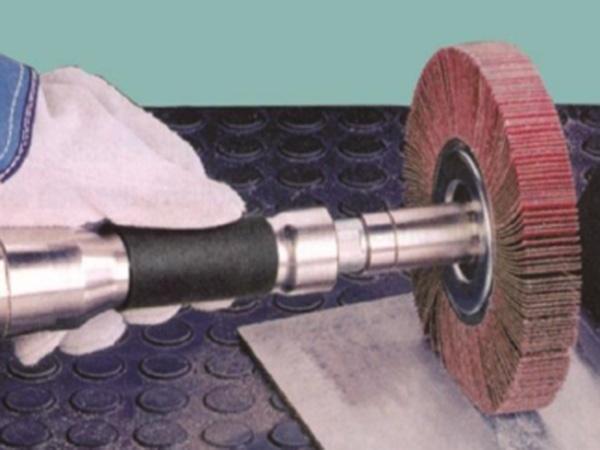

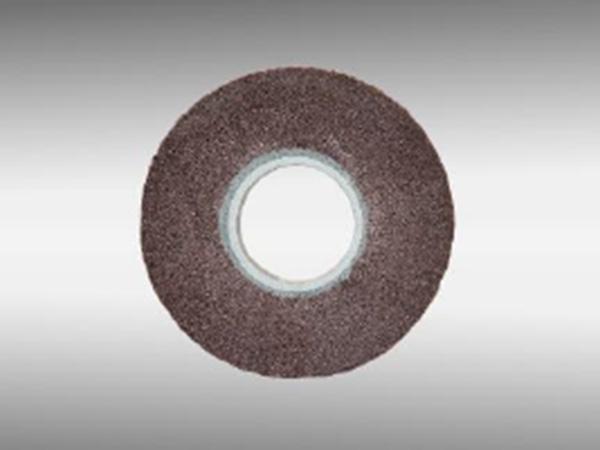

Non-Woven Polishing Flanged Flap Wheels
These non-woven polishing flanged flap wheels are produced with non-woven synthetic fiber mesh that is bonded with refined abrasive aluminum oxide grains.
These non-woven flanged wheels are specially designed for finishing and polishing jobs as well as cleaning and maintenance operations. Joysun Non-woven flanged flap wheels are perfect for finishing materials and products made from carbon steel, stainless steel, high temperature resistant alloys and all ferrous and non-ferrous metals.
| Product Code | JAC-K716GF | JAC-K726KF | JAC-K736TF |
| Abrasive Grains | Refined Alumina Oxide | Refined Alumina Oxide | Refined Alumina Oxide |
| Backing Cloth Type | Non-woven | Non-woven | Non-woven |
| Flap Mounted Version | Single | Single | Single |
| Fasten Type Of Steel Flange | U Type Slot / Straight Hole | U Type Slot / Straight Hole | U Type Slot / Straight Hole |
| BRITSH SIZE | METRIC SIZE | OPT | MAX | STD | GRIT | PART # | PART # | PART # |
| ( D x W x H ) | ( D x W x H ) | RPM | RPM | PACK | ||||
| 6" x 1" x 2" | 150 x 25 x 50 mm | 3,000 | 6,100 | 10 | Coarse | 73206 | 73406 | 73706 |
| Medium | 73219 | 73419 | 73719 | |||||
| Fine | 73222 | 73422 | 73722 | |||||
| V.Fine | 73235 | 73435 | 73735 | |||||
| 6-1/2" x 2" x 2-1/8" | 165 x 50 x 54 mm | 2,700 | 5,300 | 10 | Coarse | 73248 | 73448 | 73748 |
| Medium | 73251 | 73551 | 73751 | |||||
| Fine | 73264 | 73564 | 73764 | |||||
| V.Fine | 73277 | 73577 | 73777 | |||||
| 8" x 1" x 3" | 200 x 25 x 75 mm | 2,400 | 4,500 | 10 | Coarse | 73280 | 73580 | 73780 |
| Medium | 73293 | 73593 | 73793 | |||||
| Fine | 73306 | 73606 | 73806 | |||||
| V.Fine | 73319 | 73619 | 73819 | |||||
| 8" x 2" x 3" | 200 x 50 x 25 mm | 2,400 | 4,500 | 10 | Coarse | 73322 | 73622 | 73822 |
| Medium | 73335 | 73635 | 73835 | |||||
| 2,400 | 4,500 | 10 | Fine | 73348 | 73648 | 73848 | ||
| V.Fine | 73351 | 73651 | 73851 | |||||
| 12" x 2" x 5" | 250 x 50 x 125 mm | 1,900 | 4,000 | 10 | Coarse | 73364 | 73664 | 73864 |
| Medium | 73377 | 73677 | 73877 | |||||
| Fine | 73380 | 73680 | 73980 | |||||
| V.Fine | 73393 | 73693 | 73993 |
