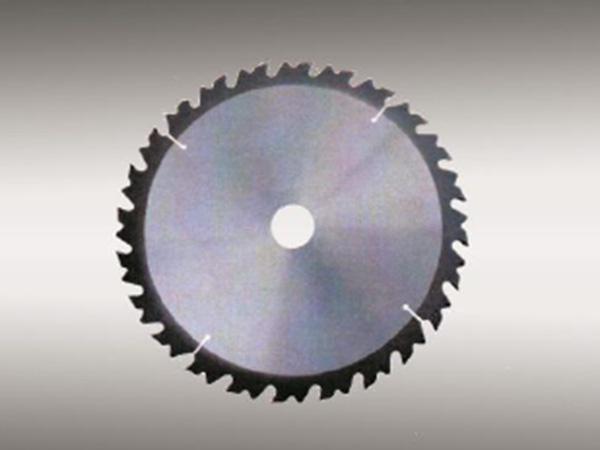

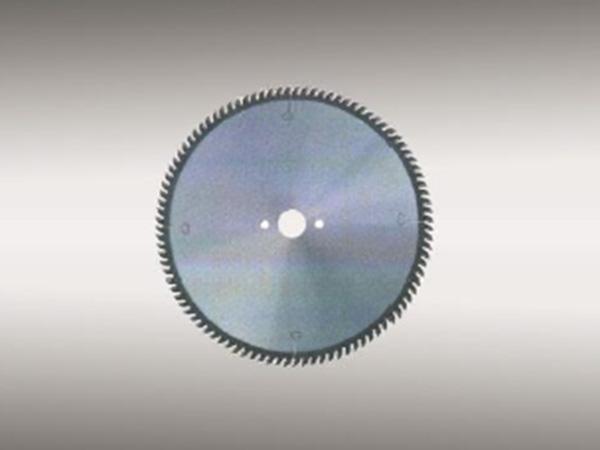

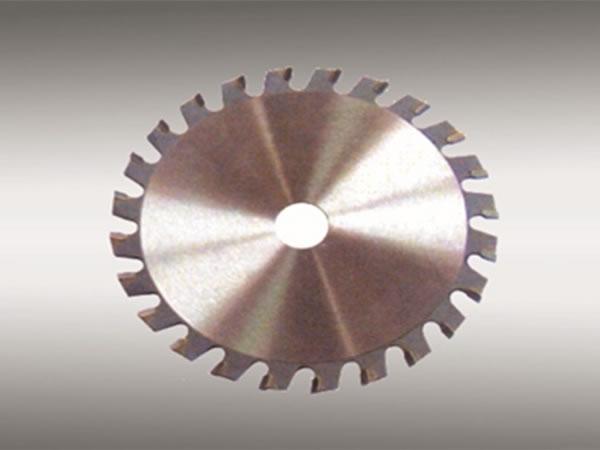

Professional T.C.T Saw Blades

Joysun professional grade TCT saw blades are used in applications such as furniture making and construction for their excellent ability to cut, score, size and groove products such as laminated materials, hard woods, and even metal products.

T.C.T. Saw Blades for Laminated Panels
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
200 x 30.00 x 2.20 mm 9,000 3.20 mm 48 10 26030
250 x 30.00 x 2.20 mm 7,000 3.20 mm 60 10 26043
250 x 30.00 x 2.20 mm 7,000 3.20 mm 80 10 26056
300 x 30.00 x 2.20 mm 6,000 3.20 mm 60 10 26069
300 x 30.00 x 2.20 mm 6,000 3.20 mm 72 10 26072
300 x 30.00 x 2.20 mm 6,000 3.20 mm 96 10 26085
350 x 30.00 x 2.50 mm 5,000 3.50 mm 72 10 26098
350 x 30.00 x 2.50 mm 5,000 3.50 mm 84 10 26201
350 x 30.00 x 2.50 mm 5,000 3.50 mm 96 10 26214
350 x 30.00 x 2.50 mm 5,000 3.50 mm 108 10 26227
400 x 30.00 x 2.50 mm 4,000 3.50 mm 80 10 26230
400 x 30.00 x 2.50 mm 4,000 3.50 mm 96 10 26243
400 x 30.00 x 2.50 mm 4,000 3.50 mm 120 10 26256
T.C.T. Saw Blades for Laminated Panels
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
200 x 30.00 x 2.20 mm 9,000 3.20 mm 64 10 26269
250 x 30.00 x 2.20 mm 7,000 3.20 mm 80 10 26272
300 x 30.00 x 2.20 mm 6,000 3.20 mm 72 10 26285
300 x 30.00 x 2.20 mm 6,000 3.20 mm 96 10 26298
350 x 30.00 x 2.50 mm 5,000 3.50 mm 84 10 26301
350 x 30.00 x 2.50 mm 5,000 3.50 mm 96 10 26314
350 x 30.00 x 2.50 mm 5,000 3.50 mm 108 10 26327
400 x 30.00 x 2.50 mm 4,000 3.50 mm 96 10 26330
400 x 30.00 x 2.50 mm 4,000 3.50 mm 120 10 26343

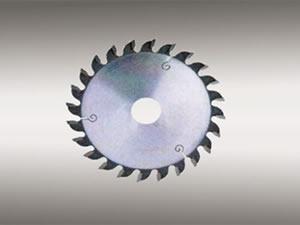

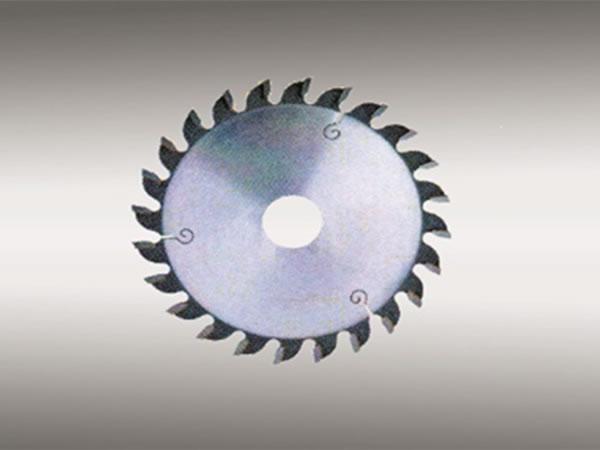

T.C.T. Adjustable Saw Blade to Scoring
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
80 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 10+10 10 26356
100 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26369
100 x 22.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26372
120 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26385
120 x 22.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26398
127 x 20.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26401
127 x 22.00 x 2.0 mm 12,000 2.80-3.60 mm 12+12 10 26414
160 x 20.00 x 2.5 mm 10,000 4.00-5.20 mm 20+20 10 26427
160 x 60.00 x 2.5 mm 10,000 4.00-5.20 mm 20+20 10 26430
180 x 20.00 x 2.5 mm 9,600 4.00-5.20 mm 20+20 10 26443
180 x 45.00 x 2.5 mm 9,600 4.00-5.20 mm 20+20 10 26456
200 x 20.00 x 2.5 mm 9,000 4.00-5.20 mm 24+24 10 26469
200 x 50.00 x 2.5 mm 9,000 4.00-5.20 mm 24+24 10 26472
T.C.T. Conical Saw Blades for Scoring
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
100 x 20/22 x 2.2 mm 12,000 2.80-4.00 mm 24 10 26485
100 x 20/22 x 2.2 mm 12,000 3.10-4.10 mm 24 10 26498
120 x 20/22 x 2.2 mm 12,000 2.80-4.00 mm 24 10 26501
120 x 20/22 x 2.2 mm 12,000 3.10-4.10 mm 24 10 26514
120 x 20/22 x 2.2 mm 12,000 3.30-4.30 mm 24 10 26527
127 x 20/22 x 2.2 mm 12,000 3.10-4.10 mm 24 10 26630
127 x 20/45 x 2.2 mm 12,000 3.30-4.30 mm 24 10 26643
150 x 25/45 x 2.2 mm 12,000 3.10-4.10 mm 36 10 26656
150 x 25/45 x 2.2 mm 12,000 3.10-4.10 mm 40 10 26669
150 x 25/45 x 2.2 mm 12,000 3.30-4.30 mm 36 10 26672
150 x 25/45 x 2.2 mm 12,000 3.30-4.30 mm 40 10 26685
160 x 20/30 x 2.2 mm 10,000 3.10-4.10 mm 36 10 26698
160 x 20/30 x 2.2 mm 10,000 3.10-4.10 mm 40 10 26701
160 x 25/45 x 2.2 mm 10,000 3.30-4.30 mm 36 10 26714
160 x 25/45 x 2.2 mm 10,000 3.30-4.30 mm 40 10 26727
180 x 20/30 x 2.2 mm 9,600 3.10-4.10 mm 36 10 26730
180 x 20/30 x 2.2 mm 9,600 3.10-4.10 mm 40 10 26743
180 x 25/45 x 2.2 mm 9,600 3.30-4.30 mm 36 10 26756
180 x 25/45 x 2.2 mm 9,600 3.30-4.30 mm 40 10 26769
T.C.T. Saw Blades for Sizing the Panel
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
300 x 30.0 x 3.0 mm 6,000 4.40 mm 48 10 26772
300 x 60.0 x 3.0 mm 6,000 4.40 mm 60 10 26785
350 x 75.0 x 3.0 mm 5,000 4.40 mm 54 10 26798
350 x 80.0 x 3.0 mm 5,000 4.40 mm 72 10 26801
350 x 60.0 x 3.0 mm 5,000 4.40 mm 84 10 26814
400 x 75.0 x 3.0 mm 4,000 4.40 mm 60 10 26827
400 x 75.0 x 3.0 mm 4,000 4.40 mm 72 10 26830
450 x 75.0 x 3.0 mm 4,000 4.40 mm 60 10 26843
450 x 80.0 x 3.0 mm 4,000 4.40 mm 72 10 26856
500 x 75.0 x 3.2 mm 3,000 4.40 mm 60 10 26869
500 x 80.0 x 3.5 mm 3,000 4.80 mm 72 10 26872
T.C.T. Saw Blades for Sizing the Panel
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
300 x 65.0 x 3.0 mm 6,000 4.40 mm 60 10 26885
300 x 75.0 x 3.0 mm 6,000 4.40 mm 60 10 26898
300 x 80.0 x 3.0 mm 6,000 4.40 mm 72 10 26901
300 x 80.0 x 3.0 mm 6,000 4.40 mm 96 10 26914
350 x 60.0 x 3.0 mm 5,000 4.40 mm 72 10 26927
350 x 75.0 x 3.0 mm 5,000 4.40 mm 72 10 26930
350 x 80.0 x 3.0 mm 5,000 4.40 mm 84 10 26943
350 x 80.0 x 3.0 mm 5,000 4.40 mm 96 10 26956
380 x 60.0 x 3.0 mm 5,000 4.40 mm 72 10 26969
380 x 60.0 x 3.5 mm 5,000 4.40 mm 72 10 27072
380 x 60.0 x 3.5 mm 5,000 4.40 mm 84 10 27085
400 x 75.0 x 3.0 mm 4,000 4.40 mm 72 10 27098
400 x 80.0 x 3.5 mm 4,000 4.80 mm 72 10 27101
400 x 75.0 x 3.0 mm 4,000 4.40 mm 96 10 27114
400 x 75.0 x 3.5 mm 4,000 4.80 mm 84 10 27127
430 x 75.0 x 3.0 mm 4,000 4.40 mm 72 10 27130
430 x 60.0 x 3.5 mm 4,000 4.80 mm 84 10 27143
450 x 60.0 x 3.0 mm 4,000 4.40 mm 72 10 27156
450 x 60.0 x 3.5 mm 4,000 4.80 mm 72 10 27169
450 x 60.0 x 3.5 mm 4,000 4.80 mm 84 10 27172
450 x 80.0 x 3.5 mm 4,000 4.80 mm 84 10 27185
450 x 60.0 x 3.5 mm 4,000 4.80 mm 96 10 27198
450 x 80.0 x 3.5 mm 4,000 4.80 mm 96 10 27201
450 x 60.0 x 3.5 mm 4,000 4.80 mm 60 10 27214
450 x 80.0 x 3.5 mm 4,000 4.80 mm 75 10 27227
480 x 80.0 x 3.5 mm 4,000 4.80 mm 84 10 27230
480 x 80.0 x 3.0 mm 4,000 4.80 mm 96 10 27243
500 x 60.0 x 3.2 mm 3,000 4.80 mm 72 10 27256
500 x 75.0 x 3.5 mm 3,000 4.80 mm 84 10 27269
500 x 80.0 x 3.5 mm 3,000 4.80 mm 96 10 27272
T.C.T. Saw Blades for Sizing & Scoring
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
125 x 20/45 x 3.0 mm 12,000 4.30-5.30 mm 24 10 27285
125 x 20/45 x 3.0 mm 12,000 4.60-5.60 mm 24 10 27298
150 x 25/45 x 3.0 mm 10,100 4.30-5.30 mm 36 10 27301
150 x 25/45 x 3.0 mm 10,100 4.30-5.30 mm 40 10 27314
150 x 25/45 x 3.0 mm 10,100 4.60-5.60 mm 36 10 27327
150 x 25/45 x 3.0 mm 10,100 4.60-5.60 mm 40 10 27330
160 x 45 x 3.0 mm 10,000 4.30-5.30 mm 36 10 27343
160 x 55 x 3.0 mm 10,000 4.30-5.30 mm 36 10 27356
160 x 60 x 3.0 mm 10,000 4.30-5.30 mm 36 10 27369
160 x 45/60 x 3.0 mm 10,000 4.30-5.30 mm 40 10 27372
160 x 45/55 x 3.0 mm 10,000 4.60-5.60 mm 36 10 27385
180 x 30/50 x 3.0 mm 9,600 4.30-5.30 mm 36 10 27398
180 x 30/50 x 3.0 mm 9,600 4.30-5.30 mm 40 10 27501
180 x 45/55 x 3.0 mm 9,600 4.60-5.60 mm 36 10 27514
200 x 20/22 x 3.0 mm 9,000 4.30-5.30 mm 36 10 27527
200 x 30/45 x 3.0 mm 9,000 4.30-5.30 mm 36 10 27530
200 x 20/80 x 3.0 mm 9,000 4.30-5.30 mm 40 10 27543
200 x 20/65 x 3.0 mm 9,000 4.60-5.60 mm 36 10 27556
300 x 25/50 x 3.0 mm 6,000 4.30-5.30 mm 48 10 27569
300 x 65/80 x 3.0 mm 6,000 4.30-5.30 mm 60 10 27572
300 x 65/80 x 3.0 mm 6,000 4.30-5.30 mm 72 10 27585
T.C.T. Saw Blades for cutting Ply-wood
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
200 x 25 x 2.2 mm 9,000 3.2 mm 60 10 27598
230 x 25 x 2.2 mm 8,000 3.2 mm 80 10 27601
250 x 25 x 2.2 mm 7,000 3.2 mm 80 10 27614
250 x 25 x 2.2 mm 7,000 3.2 mm 100 10 27627
250 x 25 x 2.2 mm 7,000 3.2 mm 120 10 27630
280 x 25/30 x 2.2 mm 6,500 3.2 mm 120 10 27643
300 x 25/30 x 2.2 mm 6,000 3.2 mm 100 10 27656
300 x 25/30 x 2.2 mm 6,000 3.2 mm 120 10 27669
T.C.T. Saw Blades for Ripping/Cross Cut
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
180 x 25 x 2.2 mm 9,000 3.2 mm 30 10 27672
200 x 25 x 2.2 mm 9,000 3.2 mm 36 10 27685
230 x 25/30 x 2.2 mm 8,000 3.2 mm 40 10 27698
250 x 30 x 2.2 mm 7,000 3.2 mm 40 10 27701
300 x 30 x 2.2 mm 6,000 3.2 mm 48 10 27714
350 x 30 x 2.5 mm 5,000 3.5 mm 54 10 27727
400 x 30 x 2.5 mm 4,700 3.5 mm 60 10 27730
450 x 30 x 2.8 mm 3,500 4.0 mm 72 10 27743
500 x 30 x 3.0 mm 3,000 4.8 mm 80 10 27756
T.C.T. Saw Blades for hardwood Grooving
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
80 x 20/30 x 1.0- 4.0 mm 15,000 1.50-5.00 mm 12+30 10 27769
100 x 20/30 x 1.0- 4.5 mm 15,000 1.50-6.00 mm 20+36 10 27772
150 x 25/45 x 1.5 -4.5 mm 12,000 2.00-6.00 mm 20+40 10 27785
160 x 25/30 x 1.5 -4.5 mm 10,000 2.00-6.00 mm 20+40 10 27798
180 x 25/30 x 1.5 -4.5 mm 9,600 2.00-6.00 mm 24+48 10 27801
200 x 25/30 x 2.0 -5.5 mm 9,000 2.50-7.00 mm 24+60 10 27814
250 x 25/30 x 2.0 -8.0 mm 7,000 2.50-10.0 mm 24+60 10 27827
300 x 25/30 x 2.0-8.0 mm 6,000 3.00-10.0 mm 28+72 10 27930
T.C.T. Saw Blades for Cutting Organic Glass
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
200 x 25/30 x 1.7 mm 9,000 2.2 mm 80 10 27943
200 x 25/30 x 2.5 mm 9,000 3.0 mm 80 10 27956
230 x 25/30 x 1.7 mm 8,000 2.2 mm 80 10 27969
230 x 25/30 x 2.5 mm 9,000 3.0 mm 80 10 27972
230 x 25/30 x 1.7 mm 8,000 2.2 mm 100 10 27985
230 x 25/30 x 2.5 mm 9,000 3.0 mm 100 10 27998
250 x 25/30 x 1.7 mm 7,000 2.2 mm 100 10 28001
250 x 25/30 x 2.5 mm 7,000 3.0 mm 100 10 28014
280 x 25/30 x 2.5 mm 6,500 3.0 mm 120 10 28027
300 x 25/30 x 2.0 mm 6,000 2.5 mm 100 10 28030
300 x 25/30 x 2.5 mm 6,000 3.0 mm 100 10 28043
300 x 25/30 x 2.0 mm 6,000 2.5 mm 120 10 28056
300 x 25/30 x 2.5 mm 6,000 3.0 mm 120 10 28069

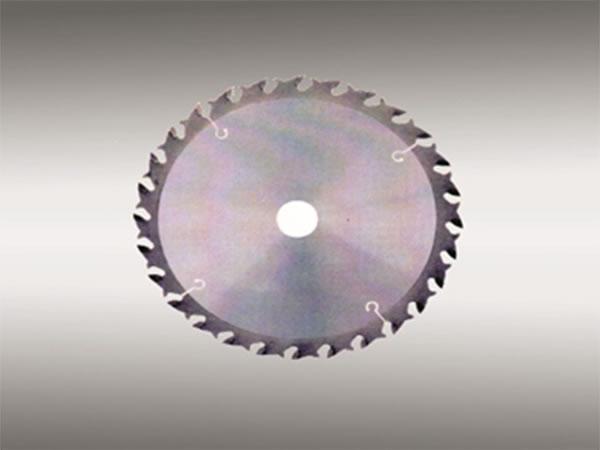

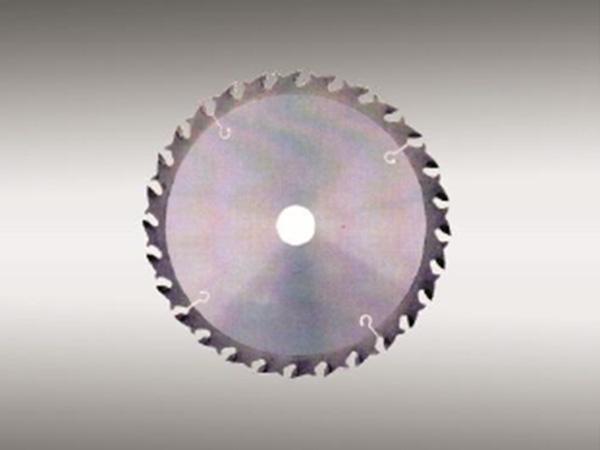

T.C.T. Saw Blades with anti-kick Back Design
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
200 x 30/70 x 2.2 mm 9,000 3.2 mm 16 10 28072
230 x 30/70 x 2.2 mm 8,000 3.2 mm 18 10 28085
250 x 30/70 x 2.2 mm 7,000 3.2 mm 20 10 28098
250 x 30/70 x 2.2 mm 7,000 3.2 mm 24 10 28101
250 x 30/70 x 2.2 mm 7,000 3.2 mm 32 10 28114
300 x 30/70 x 2.2 mm 6,000 3.2 mm 24 10 28127
300 x 30/70 x 2.2 mm 6,000 3.2 mm 28 10 28130
300 x 30/70 x 2.2 mm 6,000 3.2 mm 36 10 28143
350 x 30/70 x 2.5 mm 5,000 3.5 mm 28 10 28156
350 x 30/70 x 2.5 mm 5,000 3.5 mm 32 10 28169
350 x 30/70 x 2.5 mm 5,000 3.5 mm 40 10 28172
400 x 30/70 x 2.5 mm 4,700 3.5 mm 36 10 28185
400 x 30/70 x 2.5 mm 4,700 3.5 mm 40 10 28198
450 x 30/70 x 2.8 mm 3,500 4.0 mm 40 10 28201
450 x 30/70 x 2.8 mm 3,500 4.0 mm 48 10 28214
500 x 30/70 x 3.0 mm 3,000 4.4 mm 48 10 28227
T.C.T. Circular Saw Blade on Edge Trim machine
  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
100 x 16/32 x 2.0 mm 13,000 2.6 mm 20 10 28230
100 x 16/32 x 2.2 mm 13,000 3.0 mm 20 10 28243
100 x 16/32 x 2.5 mm 13,000 3.5 mm 20 10 28256
100 x 16/32 x 2.2 mm 13,000 3.2 mm 30 10 28269
120 x 25/40 x 2.4 mm 12,000 3.2 mm 20 10 28372
120 x 25/40 x 2.5 mm 12,000 3.5 mm 24 10 28385
120 x 25/40 x 2.0 mm 12,000 2.6 mm 24 10 28398
120 x 25/40 x 2.0 mm 12,000 2.6 mm 30 10 28401
120 x 25/40 x 2.2 mm 12,000 3.2 mm 36 10 28414
150 x 20/32 x 2.5 mm 8,000 3.2 mm 30 10 28427
190 x 40/60 x 2.0 mm 8,000 2.6 mm 36 10 28430
250 x 25 x 2.5 mm 7,000 2.0 mm 40 10 28443
300 x 25 x 3.0 mm 6,000 4.0 mm 48 10 28456
300 x 50 x 3.0 mm 6,000 4.0 mm 60 10 28469
350 x 50 x 4.0 mm 5,000 5.0 mm 70 10 28472
400 x 50 x 4.0 mm 4,700 5.0 mm 70 10 28485
450 x 50 x 4.0 mm 3,500 5.0 mm 70 10 28498
450 x 50 x 4.0 mm 3,500 5.0 mm 80 10 28501

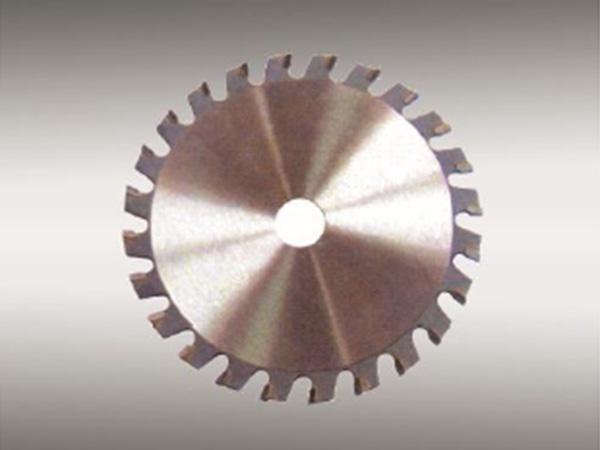

T.C.T. Saw Blade for cutting non-ferrous metals

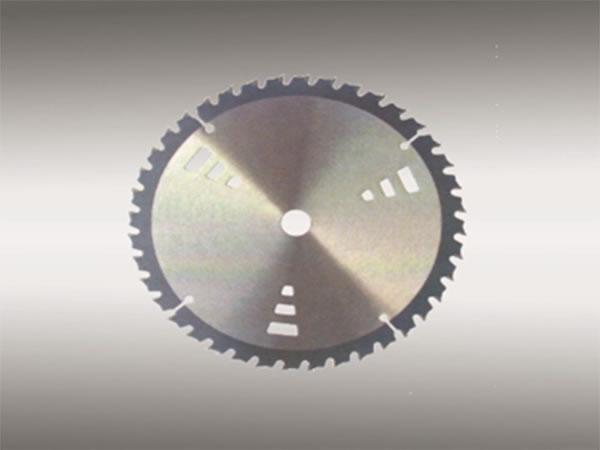

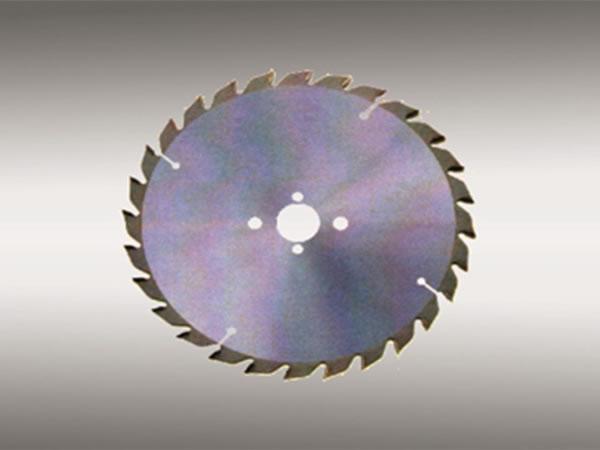

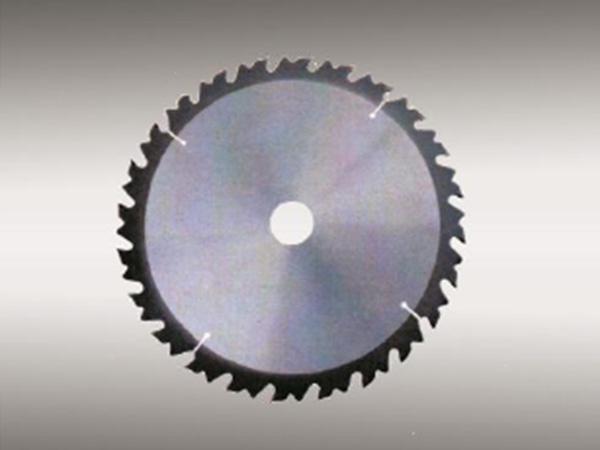

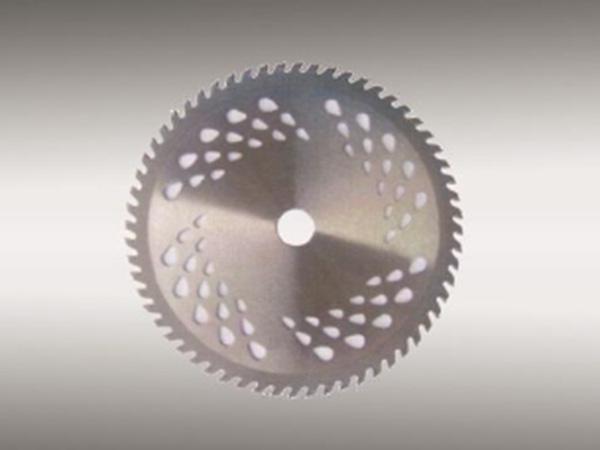

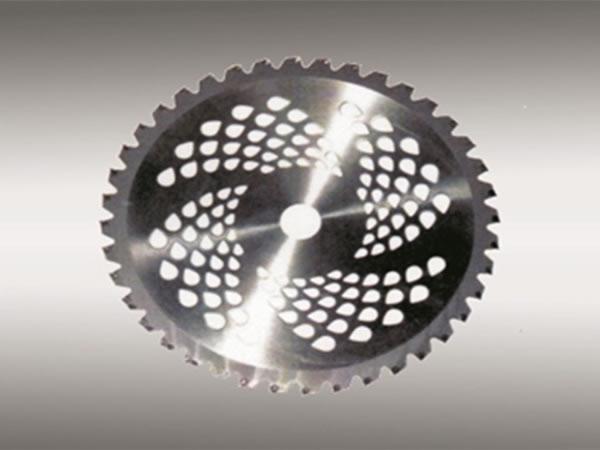

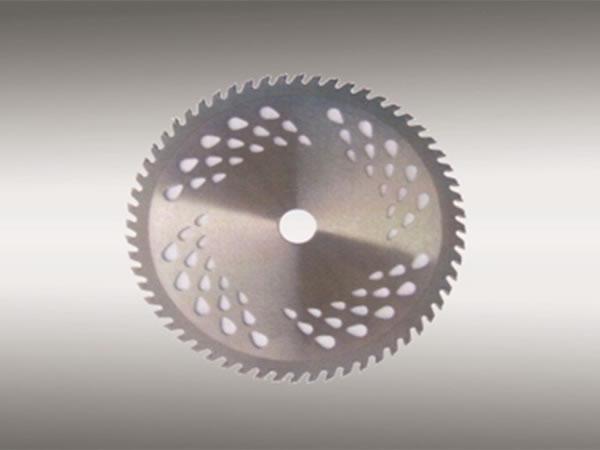

  • Professional T.C.T Saw Blades
  • Professional T.C.T Saw Blades
Availability
SIZE ( Diameter x Arbor x Thickness) SIZE (Diameter x Arbor x Thickness) MAX RPM Width of Teeth Quantity of Teeth STD PACK PART #
200 x 25 x 1.4 mm 9,000 2.0 mm 80 10 28514
200 x 25 x 2.2 mm 9,000 2.8 mm 80 10 28527
200 x 25 x 1.4 mm 9,000 2.0 mm 100 10 28530
200 x 25 x 2.2 mm 9,000 2.8 mm 100 10 28543
250 x 25 x 2.4 mm 7,000 3.0 mm 80 10 28556
250 x 25 x 2.0 mm 7,000 2.6 mm 100 10 28569
250 x 25 x 2.4 mm 7,000 3.0 mm 100 10 28572
250 x 25 x 2.0 mm 7,000 2.6 mm 120 10 28585
250 x 25 x 2.4 mm 7,000 3.0 mm 120 10 28598
300 x 25 x 2.0 mm 6,000 2.6 mm 100 10 28601
300 x 25 x 2.4 mm 6,000 3.0 mm 100 10 28614
350 x 25 x 2.4 mm 5,000 3.0 mm 100 10 28627
350 x 25 x 3.0 mm 5,000 3.6 mm 100 10 28630
400 x 25 x 2.4 mm 4,700 3.0 mm 100 10 28643
400 x 25 x 3.0 mm 4,700 3.6 mm 100 10 28656
400 x 25 x 2.4 mm 4,700 3.0 mm 120 10 28669
400 x 25 x 3.0 mm 4,700 3.6 mm 120 10 28672
450 x 25 x 3.0 mm 3,500 3.6 mm 120 10 28685
450 x 25 x 3.4 mm 3,500 4.0 mm 120 10 28698
500 x 25 x 4.0 mm 3,000 4.6 mm 100 10 28801
500 x 25 x 4.0 mm 3,000 4.6 mm 120 10 28814
550 x 25 x 4.0 mm 3,000 4.8 mm 120 10 28827
600 x 25 x 4.0 mm 2,500 4.8 mm 144 10 28830
700 x 25 x 4.0 mm 2,000 5.2 mm 144 10 28843
800 x 25 x 5.0 mm 1,200 6.0 mm 72 10 28856
800 x 25 x 5.0 mm 1,200 6.0 mm 160 10 28869
Professional T.C.T Saw Blades
Contact Us

Joysun Abrasives Co.,Ltd.

E-mail:
hopesuns@hotmail.com
joysunabrasives@hotmail.com

International Sales
Tel.: +86-371-67622388
Fax: +86-371-67622389

Domestic Sales
Tel.:
+86-371-66783281
+86-371-66783282
+86-371-66783283
Fax: +86-371-66782235

Service Centre
Tel.: +86-371-66781081
Fax: +86-371-66782235

Other Products
